MANGALAM^®

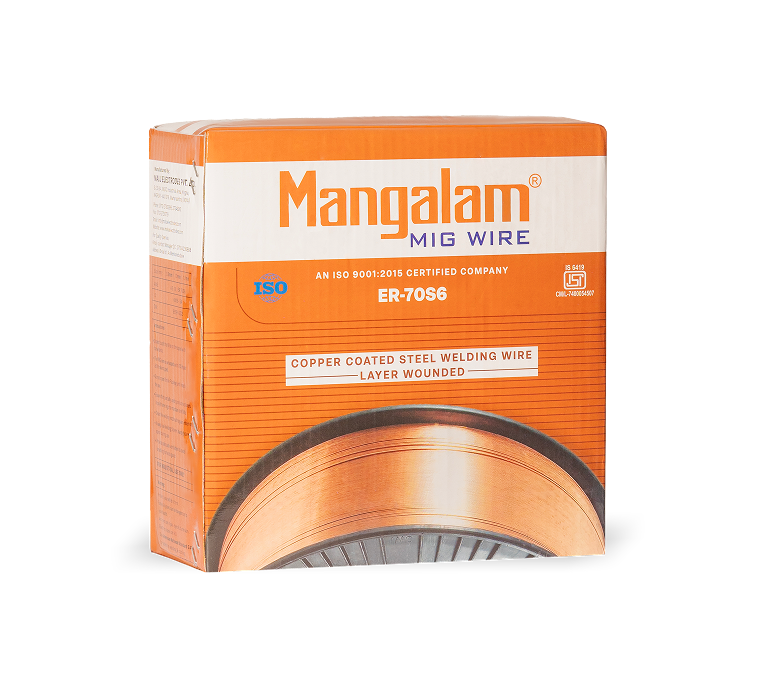

MIG Wire- IS

High-Quality MIG Wire for Versatile Applications

Mangalam MIG Wire is a double deoxidized, copper-coated carbon steel filler wire designed for MIG/MAG welding of carbon steels in general and structural engineering. It offers smooth feeding, a stable arc, and minimal spatter under optimal welding conditions. Its high deoxidizer content makes it ideal for environments with dust, rust, or mill scale.

Quantity :

SWG Size 6 SWG Size 8 SWG Size 10 SWG Size 12

Buy Now Download Brochure

Designed for Efficiency, Durability, and Precision

Double deoxidized for enhanced performance in challenging conditions

Uniform copper coating ensures smooth wire feeding

Stable arc with minimal spatter under optimal settings

Suitable for high-speed robotic, automatic, and semi-automatic welding

Works well on surfaces with dust, rust, or mill scale

Built for Diverse Industrial and Structural Uses

Construction and mining equipment

Pressure vessels, pipelines, and ductwork

LPG cylinders and thin sheet auto body fabrication

Shipping containers, railway wagons, and coaches

High-speed robotic, automatic, and semi-automatic welding setups

Packing Data

Size (mm)	KG/Spool	Component	Current in Amps
0.80	15	17 – 24	70 - 220
1.00	15	20 – 28	100 - 275
1.20	15	24 – 30	150 - 300
1.60	15	24 – 36	150 - 450

Shielding Gas: 100% CO₂

Flow Rate: 10 – 25 LPM

Chemical Composition of Weld Metal (%)

Mechanical Properties of All Weld Metal

Element	Typical Value (%)
Carbon (C)	0.07 - 0.15
Manganese (Mn)	1.40 - 1.85
Silicon (Si)	0.80 - 1.15
Sulfur (S)	0.025 Max
Phosphorus (P)	0.025 Max
Copper (Cu)	0.50 Max
