Versatile Applications: Built for Every Industry’s Needs
General Fabrication
Ideal for vessels, tanks, and structures in steel plants.
Bridge, structure, and construction work
Perfect for the construction of critical infrastructure.
Automobile frames & bodies
Reliable for automotive manufacturing.
Shipbuilding & pipelines
Suited for building durable ships and laying pipelines.
Storage tank & furniture work
Can be used for storage tank fabrication and furniture welding.
Joining steel grades IS 2062, IS 226
Excellent compatibility with commonly used steel grades.

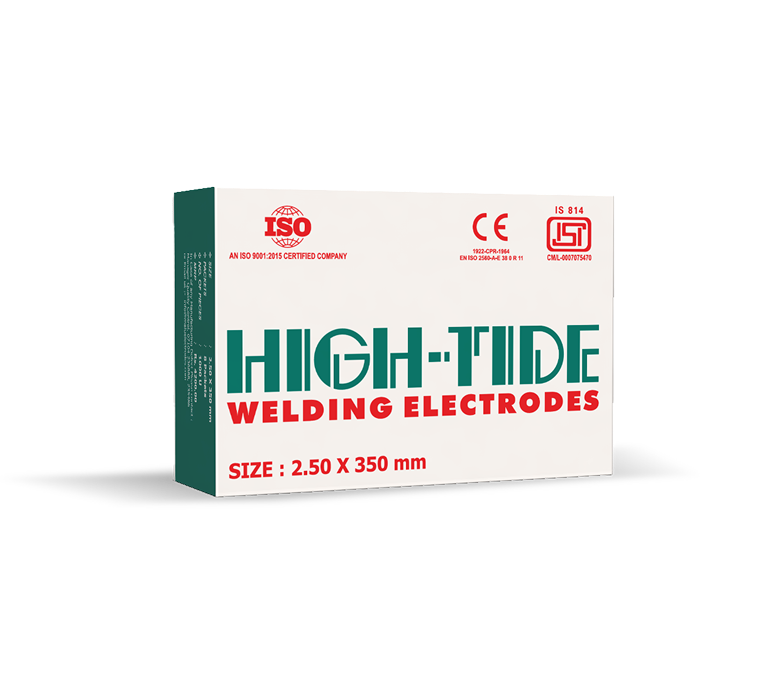

Packing Data
| SWG Size | Size (mm) | Electrodes/Packet | Electrodes/Carton | Current (Amps) |
| 12 | 2.50 x 350 | 125 | 1500 | 80 - 110 |
| 10 | 3.15 x 350/450 | 90 | 1080 | 90 - 130 |
| 8 | 4.00 x 350/450 | 60 | 720 | 140 - 190 |
| 6 | 5.00 x 450 | 40 | 480 | 170 - 230 |
Chemical Composition of Weld Metal (%)
Mechanical Properties of Weld Metal
| Element | Composition (%) |
| Carbon (C) | 0.10 Max |
| Manganese (Mn) | 0.35 - 0.65 |
| Silicon (Si) | 0.30 Max |
| Sulfur (S) | 0.030 Max |
| Phosphorus (P) | 0.030 Max |
| Property | Value |
| UTS (N/mm²) | 410 - 540 |
| YS (N/mm²) | 330 Min |
| Elongation (%) | 22 Min |
| CVN Impact at 0°C (J) | 47 Min |
Test Performance:
Bend Test: 3 T at 180° - Satisfactory
Radiography Test: II Blue Standard - Satisfactory
Storage Stability: Satisfactory
Current Conditions
Operates on AC current.
Operates on DC current.

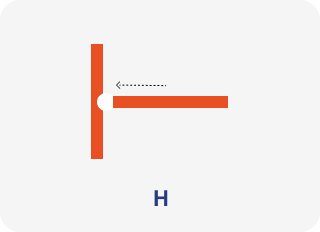

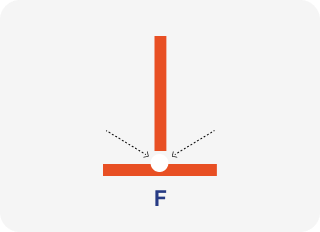

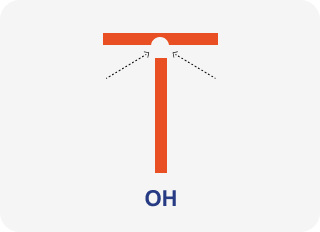

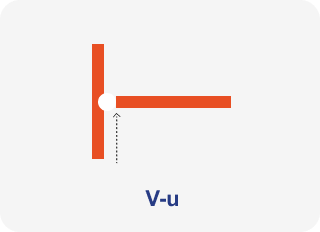

Welding Positions: F, H, V-DOWN, V-UP, OH.
