Engineered for Versatility and Performance
Welding Cr-Ni steels such as AISI 301, 302, 304, and 308.
Stainless steel components in the food and chemical industries.
Pipeline welding in oil and refinery plants
Fabrication of boilers, reactors, and turbines.

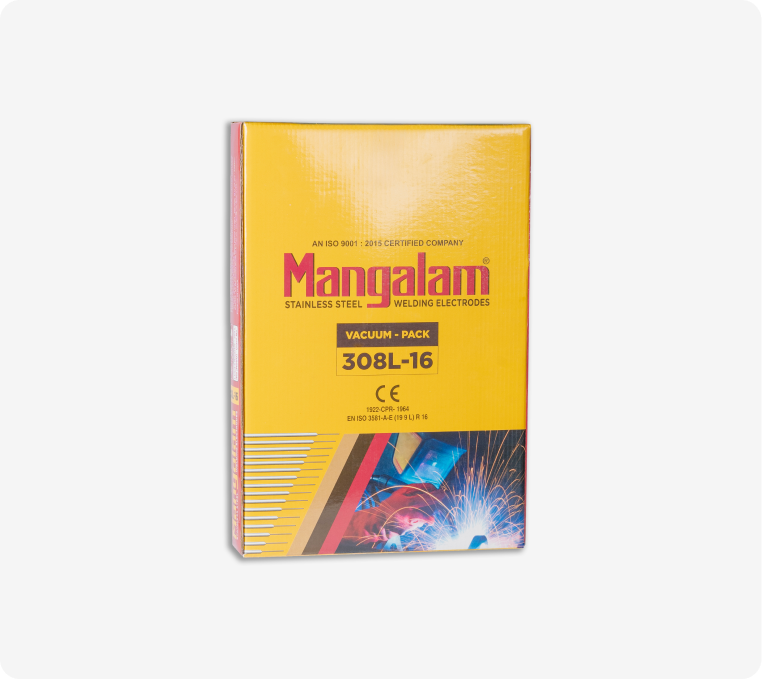

Packing Data
| SWG Size | Size (mm) | Electrodes/Packet | Electrodes/Carton | Current (Amps) |
| 12 | 2.50 x 350 | 2 Kg | 10 Kg / 5 Pkt | 45-85 |
| 10 | 3.15 x 350 | 2 Kg | 10 Kg / 5 Pkt | 15-115 |
| 8 | 4.00 x 350 | 2 Kg | 10 Kg / 5 Pkt | 100-140 |
| 6 | 5.00 x 350 | 2 Kg | 10 Kg / 5 Pkt | 140-180 |
Chemical Composition of Weld Metal (%)
Mechanical Properties of Weld Metal
| Element | Composition (%) |
| Carbon (C) | 0.04 Max |
| Manganese (Mn) | 0.50 - 2.50 |
| Silicon (Si) | 1.00 Max |
| Sulfur (S) | 0.030 Max |
| Phosphorus (P) | 0.040 Max |
| Nickel (Ni) | 9.00 - 11.00 |
| Chromium (Cr) | 18.00 - 21.00 |
| Molybdenum (Mo) | 0.75 Max |
| Property | Value |
| UTS (N/mm²) | 520 Min |
| Elongation (%) | 30 Min |
| Ferrite No. | 3 - 7 |
Test Performance:
Radiography Test: Blue Standard - Satisfactory
Storage Stability: Satisfactory
Current Conditions
Operates on AC current.
Operates on DC current.
WELDING POSITIONS: F, H, V-UP, OH.
