MANGALAM^®

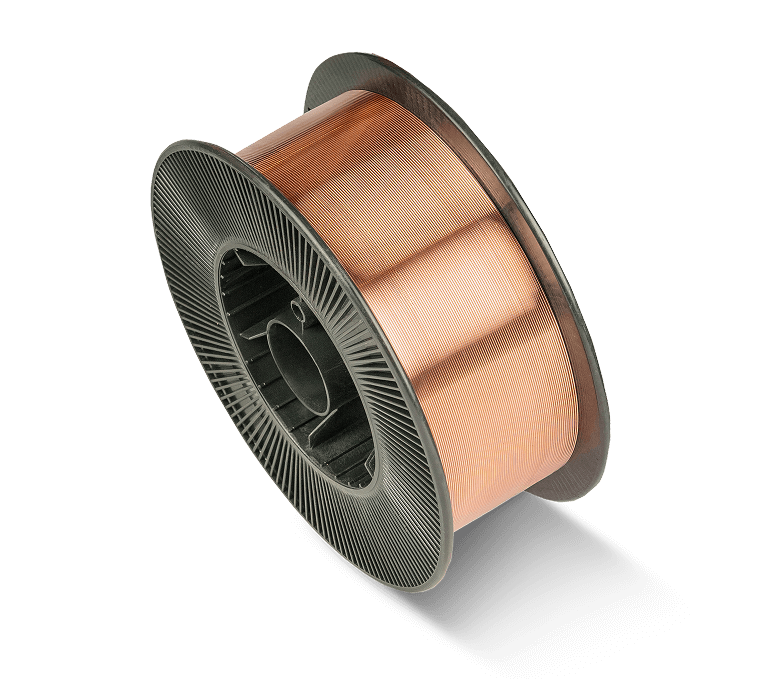

MIG Wire- DIN

Reliable and Versatile Wire for Smooth Welding Operations

Mangalam MIG Wire - DIN is a copper-coated carbon steel filler wire designed for MIG/MAG welding of carbon steels across general and structural engineering applications. With double deoxidization, uniform copper coating, smooth wire feeding, stable arc, and minimal spatter, it ensures clean, efficient welds under optimal conditions. The higher deoxidizer content makes it suitable even for applications involving dust, rust, or mill scale.

Quantity :

SWG Size 6 SWG Size 8 SWG Size 10 SWG Size 12

Buy Now Download Brochure

Built for Efficiency, Durability, and Precision

Double deoxidized copper-coated carbon steel wire

Stable arc and smooth feeding for precise welds

Minimal spatter and uniform copper coating

Suitable for welding in dusty, rusty, or mill-scaled environments

Compatible with automatic, semi-automatic, and robotic welding

Versatile welding positions: Flat, Horizontal, Vertical (Up/Down), and Overhead

Wide-Ranging Applications for Structural and Industrial Welding

Construction and mining equipment

Pressure vessels, pipelines, and ductwork

LPG cylinders and thin sheet auto body fabrication

Shipping containers, railway wagons, and coaches

High-speed robotic, automatic, and semi-automatic welding setups

Packing Data

Size (mm)	KG/Spool	Component	Current in Amps
0.80	15	17 – 24	70 - 220
1.00	15	20 – 28	100 - 275
1.20	15	24 – 30	150 - 300
1.60	15	24 – 36	150 - 450

Shielding Gas: 100% CO₂

Flow Rate: 10 – 25 LPM

Chemical Composition of Weld Metal (%)

Mechanical Properties of All Weld Metal

Element	Typical Value (%)
Carbon (C)	0.06 - 0.13
Manganese (Mn)	1.30 - 1.60
Silicon (Si)	0.70 - 1.00
Sulfur (S)	0.025 Max
Phosphorus (P)	0.025 Max
Copper (Cu)	0.30 Max
